Routing RIP di Juniper

1. Intro

- RIP termasuk protokol distance vector

- Hop count adalah parameter utama dalam menentukan jalur terbaik

- Max hop count 15

- Update setiap 30 detik

2. Topology

3. Konfigurasi

set logical-systems R1 interfaces em0 unit 0 vlan-id 12

set logical-systems R1 interfaces em0 unit 0 family inet address 12.12.12.1/24

set logical-systems R1 interfaces em0 unit 1 vlan-id 14

set logical-systems R1 interfaces em0 unit 1 family inet address 14.14.14.1/24

set logical-systems R1 interfaces lo0 unit 0 family inet address 1.1.1.1/32

set logical-systems R1 protocols rip group 1 export Loopback

set logical-systems R1 protocols rip group 1 export Direct

set logical-systems R1 protocols rip group 1 neighbor em0.0

set logical-systems R1 policy-options policy-statement Direct term Directly_connected from protocol direct

set logical-systems R1 policy-options policy-statement Direct term Directly_connected then accept

set logical-systems R1 policy-options policy-statement Loopback term Loopback1 from route-filter 1.1.1.1/32 exact

set logical-systems R1 policy-options policy-statement Loopback term Loopback1 then accept

set logical-systems R2 interfaces em1 unit 0 vlan-id 12

set logical-systems R2 interfaces em1 unit 0 family inet address 12.12.12.2/24

set logical-systems R2 interfaces em1 unit 1 vlan-id 23

set logical-systems R2 interfaces em1 unit 1 family inet address 23.23.23.2/24

set logical-systems R2 interfaces em1 unit 3 vlan-id 24

set logical-systems R2 interfaces em1 unit 3 family inet address 24.24.24.2/24

set logical-systems R2 interfaces lo0 unit 1 family inet address 2.2.2.2/32

set logical-systems R2 protocols rip group 1 export Loopback

set logical-systems R2 protocols rip group 1 export Direct

set logical-systems R2 protocols rip group 1 neighbor em1.0

set logical-systems R2 protocols rip group 1 neighbor em1.1

set logical-systems R2 protocols rip group 1 neighbor em1.3

set logical-systems R2 policy-options policy-statement Direct term Directly_connected from protocol direct

set logical-systems R2 policy-options policy-statement Direct term Directly_connected then accept

set logical-systems R2 policy-options policy-statement Loopback term Directly_connected then accept

set logical-systems R2 policy-options policy-statement Loopback term Loopback1 from route-filter 2.2.2.2/32 exact

set logical-systems R2 policy-options policy-statement Loopback term Loopback1 then accept

set logical-systems R3 interfaces em2 unit 0 vlan-id 23

set logical-systems R3 interfaces em2 unit 0 family inet address 23.23.23.3/24

set logical-systems R3 interfaces em2 unit 1 vlan-id 34

set logical-systems R3 interfaces em2 unit 1 family inet address 34.34.34.3/24

set logical-systems R3 interfaces lo0 unit 2 family inet address 3.3.3.3/32

set logical-systems R3 protocols rip group 1 export Direct

set logical-systems R3 protocols rip group 1 export Loopback

set logical-systems R3 protocols rip group 1 neighbor em2.0

set logical-systems R3 policy-options policy-statement Direct term Directly_connected from protocol direct

set logical-systems R3 policy-options policy-statement Direct term Directly_connected then accept

set logical-systems R3 policy-options policy-statement Loopback term Loopback1 from route-filter 3.3.3.3/32 exact

set logical-systems R3 policy-options policy-statement Loopback term Loopback1 then accept

set logical-systems R4 interfaces em3 unit 1 vlan-id 14

set logical-systems R4 interfaces em3 unit 1 family inet address 14.14.14.4/24

set logical-systems R4 interfaces em3 unit 2 vlan-id 24

set logical-systems R4 interfaces em3 unit 2 family inet address 24.24.24.4/24

set logical-systems R4 interfaces em3 unit 3 vlan-id 34

set logical-systems R4 interfaces em3 unit 3 family inet address 34.34.34.4/24

set logical-systems R4 interfaces lo0 unit 4 family inet address 4.4.4.4/32

set logical-systems R4 protocols rip group 1 export Direct

set logical-systems R4 protocols rip group 1 export Loopback

set logical-systems R4 protocols rip group 1 neighbor em3.2

set logical-systems R4 policy-options policy-statement Direct term Directly_Connected from protocol direct

set logical-systems R4 policy-options policy-statement Direct term Directly_Connected then accept

set logical-systems R4 policy-options policy-statement Loopback term Loopback1 from route-filter 4.4.4.4/32 exact

set logical-systems R4 policy-options policy-statement Loopback term Loopback1 then accept

set interfaces em0 vlan-tagging

set interfaces em1 vlan-tagging

set interfaces em2 vlan-tagging

set interfaces em3 vlan-tagging

set interfaces em4 vlan-tagging

4. Routing Tabel

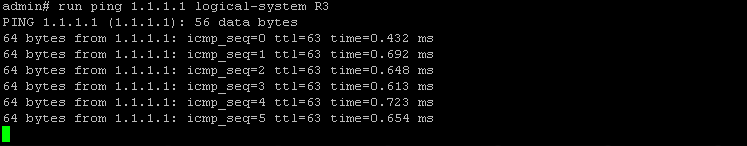

4. Tes Ping
